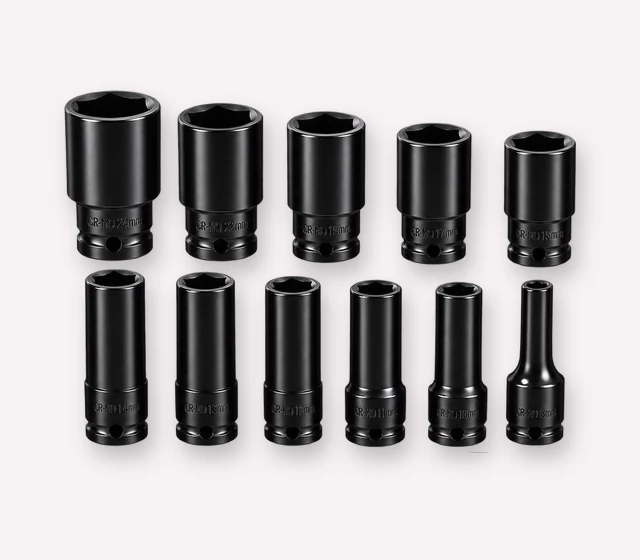

Customized Impact Socket
2 products listed

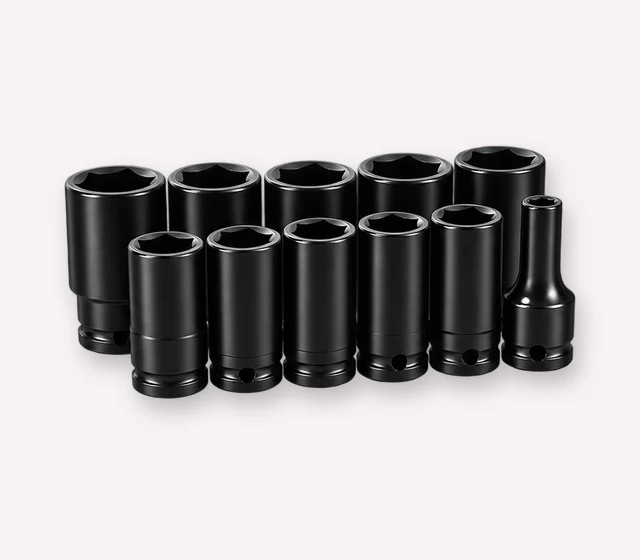

Customized Impact Socket Deep Set
Send EnquirySIZE CHART
Available sizes (mm)
3/8" Sq. Dr.
| A/F | Max DIA | Imp Hex | Imp Hex Deep | |||
|---|---|---|---|---|---|---|
| mm | Inch | C | OAL | C | OAL | |
| 6, 7, 8, 9 | 1/4", 5/16", 3/8" | 19 | 14 | 26 | 42 | 54 |
| 10, 11, 12, 13 | 7/16", 1/2" | 20 | 14 | 26 | 42 | 54 |
| 14, 15, 16, 17 | 9/16", 5/8", 11/16" | 25 | 18 | 30 | 48 | 60 |
| 18, 19, 20 | 3/4", 13/16" | 28 | 18 | 30 | 48 | 60 |
| 21, 22 | 7/8", 15/16" | 30 | 18 | 30 | 48 | 60 |
1/2" Sq. Dr.
| A/F | Max DIA | Imp Hex | Imp Hex Deep | |||
|---|---|---|---|---|---|---|
| mm | Inch | C | OAL | C | OAL | |
| 6, 7, 8, 9, 10 | 1/4", 5/16", 3/8" | 24 | 15 | 32 | 63 | 80 |
| 11, 12, 13 | 7/16", 1/2" | 24 | 18 | 35 | 63 | 80 |
| 14, 15, 16 | 9/16", 5/8" | 26 | 18 | 35 | 63 | 80 |
| 17, 18, 19 | 11/16", 3/4" | 29 | 18 | 35 | 63 | 80 |
| 20, 21, 22 | 13/16", 7/8" | 32 | 21 | 38 | 63 | 80 |
| 23, 24, 25 | 15/16" | 36 | 26 | 43 | 63 | 80 |
| 26, 27 | 1", 1.1/16" | 40 | 27 | 44 | 63 | 80 |
| 28, 29, 30 | 1.1/8", 1.3/16" | 42 | 27 | 44 | 63 | 80 |
| 32, 33 | 1 1/4", 1.5/16" | 46 | 28 | 45 | 63 | 80 |
| 34, 36 | 1.3/8", 1.7/16" | 50 | 30 | 47 | 63 | 80 |
3/4" Sq. Dr.
| A/F | Max DIA | Imp Hex | Imp Hex Deep | |||
|---|---|---|---|---|---|---|
| mm | Inch | C | OAL | C | OAL | |
| 17, 19, 20 | 11/16", 3/4" | 42 | 21 | 45 | 61 | 85 |
| 21, 22, 24 | 13/16", 7/8", 15/16" | 42 | 21 | 48 | 61 | 85 |
| 26, 27, 28 | 1.1/16", 1.1/8" | 47 | 24 | 48 | 66 | 90 |
| 30, 32, 34 | 1.3/16", 1.1/4", 1.5/16" | 52 | 30 | 54 | 66 | 90 |
| 36, 38 | 1.7/16", 1.1/2" | 57 | 35 | 59 | 66 | 90 |
| 41, 42 | 1.5/8" | 62 | 35 | 59 | 66 | 90 |
| 43, 46 | 1.11/16", 1.13/16" | 67 | 38 | 62 | 76 | 100 |
| 48, 50 | 1.7/8", 2" | 70 | 37 | 65 | 76 | 100 |
| 52, 55 | 2.1/16", 2.3/16" | 77 | 44 | 68 | 76 | 100 |
| 57, 60 | 2.1/4", 2.3/8" | 84 | 48 | 72 | 76 | 100 |
| 62, 65 | 2.7/16", 2.9/16" | 90 | 51 | 75 | 76 | 100 |
| 67, 70 | 2.5/8", 2.3/4" | 96 | 51 | 75 | 76 | 100 |
Need a size that is not listed? Send us your requirement.
